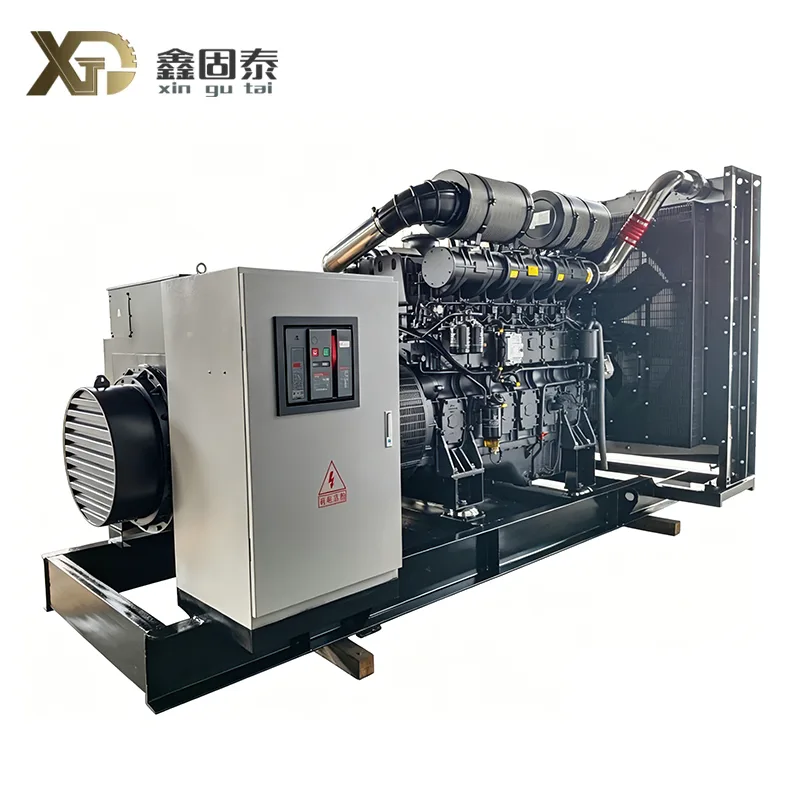

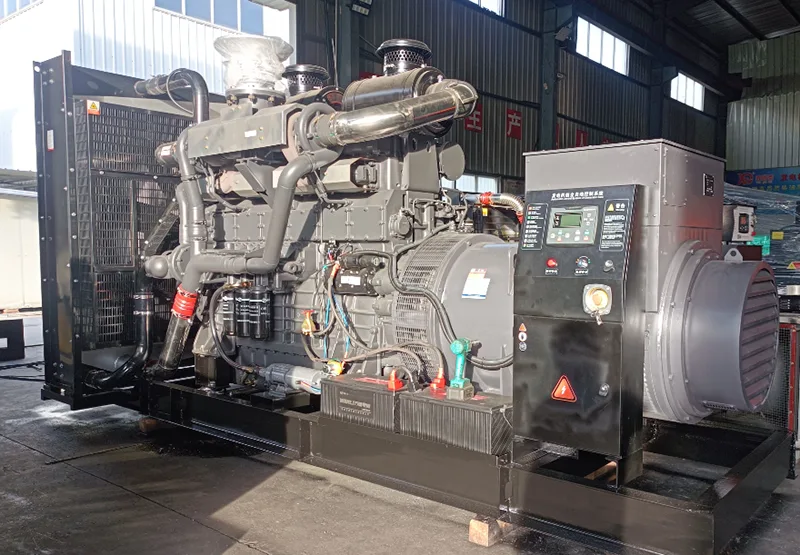

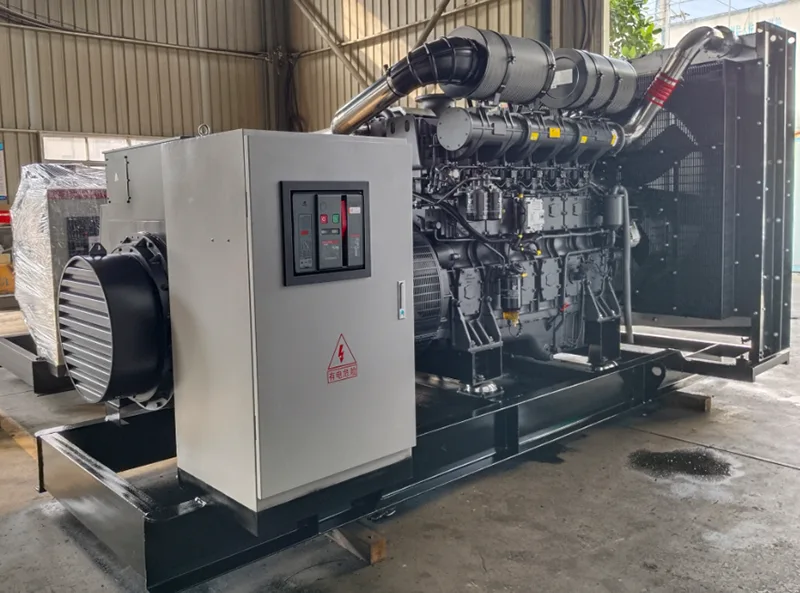

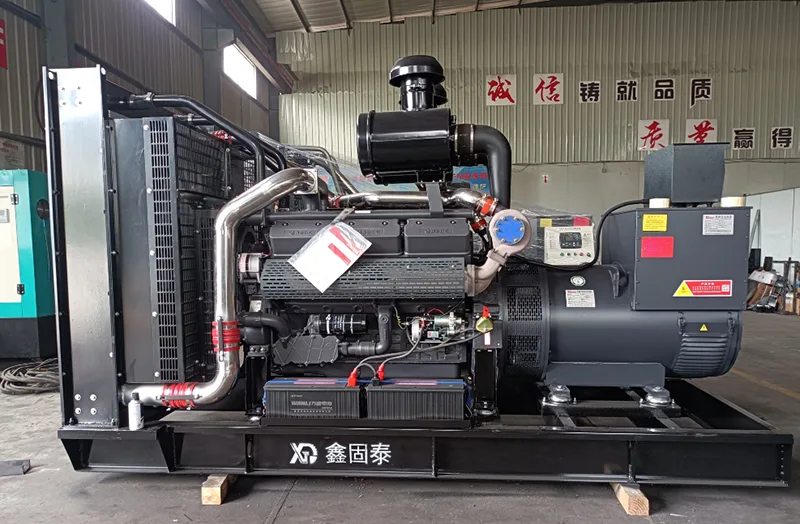

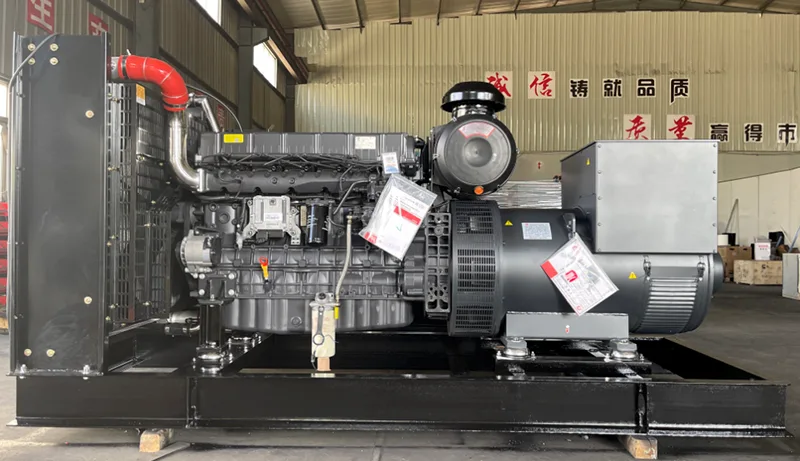

Shangchai Series Power Diesel Generator Set
Mesin diesel seri 135 saka Shangchai Series Power Diesel Generator Set diprodhuksi dening Shanghai New Power Automotive Technology Co., Ltd. ing China minangka model sing paling wiwitan dikembangake lan paling akeh digunakake ing China. Teknologi kasebut wis diwasa, suku cadang gampang dituku, lan jangkauan daya kalebu 8KW-2000KW. Ana papat silinder tegak, enem silinder tegak, lan mesin 12 silinder sing bentuke V.
Biaya operasi sing murah, ramah lingkungan lan kurang swara, manut lan ora kuwatir. Daya kuwat, konsumsi bahan bakar kurang, linuwih dhuwur, daya adaptasi sudhut, kontrol elektronik cerdas, gampang kanggo tuku bagean, layanan sawise-sales lengkap, reputasi stabil ing perdagangan manca lan pemandangan industri. Sugeng rawuh kanggo tuku Shangchai Series Power Diesel Generator Set saka kita.
1000KW diesel generator set
800KW diesel generator set
500KW diesel generator set
400KW diesel generator set
Parameter teknis utama （50HZ/Standar Emisi Nasional China II）
|
Genset Model |
Daya Genset Umum/Serep (KW) |
Daya Enjin Umum/Serep (Kw) |
Model Engin |
Saiki (A) |
Tingkat Konsumsi Bahan Bakar (g/kw·h) |
Pengungsi (L)
|
Lubricating Kapasitas lenga |
silinder Q·ty |
Bore×Stroke (mm) |
rasio komprèsi |
ukuran outline (mm) |
Bobot (kg) |
|
XGT-12 |
12/13.2 |
16/18 |
4Z2.3-G21 |
21.6 |
240 |
2.27 |
5.5 |
4 |
85×100 |
18:1 |
1500×600×1000 |
400 |
|
XGT-16 |
16/18 |
22/24 |
4Z2.7-G21 |
28.8 |
225 |
2.7 |
6.5 |
4 |
90×105 |
18.5:1 |
1500×650×1100 |
500 |
|
XGT-20 |
20/22 |
27/30 |
4Z3.0-G21 |
36 |
228 |
3 |
6.5 |
4 |
98×115 |
18.5:1 |
1550×650×1100 |
550 |
|
XGT-25 |
25/27.5 |
32/35 |
4Z3.2-G21 |
45 |
225 |
3.2 |
6.5 |
4 |
98×105 |
18.5:1 |
1550×650×1100 |
600 |
|
XGT-32 |
32/35 |
39/44 |
4ZT3.2-G21 |
57.6 |
220 |
3.2 |
6.5 |
4 |
98×105 |
18.5:1 |
1600×890×1200 |
770 |
|
XGT-40 |
40/44 |
49/54 |
4ZT3.5-G21 |
72 |
210 |
3.5 |
6.5 |
4 |
98×115 |
18.5:1 |
1600×750×1200 |
780 |
|
XGT-50 |
50/55 |
60/66 |
4ZT4.1-G21 |
90 |
217 |
4.1 |
6.5 |
4 |
105×118 |
18:1 |
1600×750×1200 |
790 |
|
XGT-55 |
55/60 |
64/70 |
4ZTAA4.1-G21 |
99 |
209 |
4.1 |
6.5 |
4 |
105×118 |
18:1 |
1650×750×1200 |
795 |
|
XGT-64 |
64/70 |
78/86 |
SC4H115D2 |
115.2 |
195 |
4.3 |
11-13 |
4 |
105×124 |
17.3:1 |
2000×700×1300 |
900 |
|
XGT-80 |
80/90 |
95/105 |
SC4H140D2 |
144 |
195 |
4.3 |
11-13 |
4 |
105×124 |
16:1 |
2000×830×1250 |
1040 |
|
XGT-90 |
90/100 |
105/116 |
SC4H160D2 |
162 |
195 |
4.3 |
11-13 |
4 |
105×124 |
16:1 |
2100×830×1250 |
1180 |
|
XGT-100 |
100/110 |
120/132 |
SC4H180D2 |
180 |
195 |
4.3 |
11-13 |
4 |
185×200 |
16:1 |
2150×850×1250 |
1200 |
|
XGT-100 |
100/110 |
120/130 |
SC7H180D2 |
180 |
195 |
6.5 |
15-17.5 |
6 |
105×124 |
16:1 |
2150×850×1250 |
1300 |
|
XGT-120 |
120/132 |
138/152 |
SC7H205D2 |
216 |
195 |
6.5 |
15-17.5 |
6 |
105×124 |
16:1 |
2400×850×1400 |
1400 |
|
XGT-130 |
130/145 |
150/165 |
SC7H220D2 |
234 |
195 |
6.5 |
15-17.5 |
6 |
105×124 |
16:1 |
2400×850×1400 |
1450 |
|
XGT-135 |
135/150 |
154/170 |
SC7H230D2 |
243 |
195 |
6.5 |
15-17.5 |
6 |
105×124 |
16:1 |
2400×950×1400 |
1550 |
|
XGT-150 |
150/165 |
168/185 |
SC7H250D2 |
270 |
195 |
6.5 |
15-17.5 |
6 |
105×124 |
16:1 |
2500×960×1400 |
1580 |
|
XGT-160 |
160/180 |
185/204 |
SC8D280D2 |
288 |
200 |
8.3 |
15-19 |
6 |
114×135 |
18:1 |
2600×1000×1400 |
1600 |
|
XGT-180 |
180/200 |
208/228 |
SC9D310D2 |
324 |
200 |
8.9 |
15-19 |
6 |
114×144 |
18:1 |
2600×970×1550 |
1700 |
|
XGT-200 |
200/220 |
228/225 |
SC9D340D2 |
360 |
198 |
8.9 |
22-25 |
6 |
114×144 |
16.5:1 |
2600×1060×1550 |
1870 |
|
XGT-200 |
200/220 |
236/260 |
SC10E350D2 |
360 |
192 |
10.4 |
33-36 |
6 |
128×135 |
17:1 |
2900×1050×1600 |
2000 |
|
XGT-220 |
220/250 |
255/280 |
SC10E380D2 |
396 |
192 |
10.4 |
33-36 |
6 |
128×135 |
17:1 |
3000×1050×1700 |
2150 |
|
XGT-250 |
250/280 |
280/308 |
SC12E420D2 |
450 |
192 |
11.8 |
33-36 |
6 |
128×153 |
17:1 |
3000×1160×1700 |
2350 |
|
XGT-280 |
280/300 |
307/338 |
SC12E460D2 |
504 |
192 |
11.8 |
33-36 |
6 |
128×153 |
17:1 |
3000×1160×1700 |
2380 |
|
XGT-290 |
290/320 |
323/355 |
SC12E480D2 |
522 |
192 |
11.8 |
33-36 |
6 |
128×153 |
17:1 |
3100×1160×1700 |
2650 |
|
XGT-300 |
300/330 |
339/373 |
SC13E500D2 |
540 |
192 |
12.8 |
33-36 |
6 |
130×161 |
17:1 |
3200×1200×1750 |
2800 |
|
XGT-320 |
320/360 |
368/405 |
SC13E550D2 |
576 |
192 |
12.8 |
33-36 |
6 |
130×161 |
17:1 |
3000×1160×1700 |
2590 |
|
XGT-250 |
250/280 |
280/308 |
SC13G420D2 |
450 |
205 |
12.88 |
33-41 |
6 |
135×150 |
15.75:1 |
3000×1160×1700 |
2480 |
|
XGT-300 |
300/330 |
330/373 |
SC15G500D2 |
540 |
205 |
14.2 |
33-41 |
6 |
135×165 |
15.55:1 |
3000×1270×1700 |
2780 |
|
XGT-360 |
360/400 |
405/445.5 |
SC25G610D2 |
648 |
205 |
25.8 |
55-65 |
12 |
135×150 |
16:1 |
3000×1160×1700 |
3900 |
|
XGT-400 |
400/450 |
459/505 |
SC25G690D2 |
720 |
205 |
25.8 |
55-65 |
12 |
135×150 |
16:1 |
3500×1450×2200 |
4100 |
|
XGT-450 |
450/500 |
505/560 |
SC27G755D2 |
810 |
205 |
26.6 |
55-65 |
12 |
135×155 |
16:1 |
3500×1450×2200 |
4200 |
|
XGT-500 |
500/550 |
561/610 |
SC27G830D2 |
900 |
205 |
26.6 |
55-65 |
12 |
135×155 |
16:1 |
3500×1500×2200 |
4300 |
|
XGT-550 |
550/600 |
602/662 |
SC27G900D2 |
990 |
205 |
26.6 |
55-65 |
12 |
135×155 |
16:1 |
3500×1500×2200 |
4300 |
|
XGT-600 |
600/660 |
660/726 |
SC33W990D2 |
1080 |
205 |
32.8 |
75-100 |
6 |
180×215 |
15:1 |
4500×1600×2150 |
5200 |
|
XGT-700 |
700/780 |
782/860 |
SC33W1150D2 |
990 |
205 |
32.8 |
75-100 |
6 |
180×215 |
15:1 |
4600×1800×2400 |
5900 |
Parameter teknis utama （50HZ/Standar Emisi Nasional China III）
| GensetModel | Genset PowerCommon/Backup(KW) | Engin PowerCommon/Backup(Kw) | Model Engin | Saiki (A) | Tingkat Konsumsi Bahan Bakar （g/kw·h） | Pengungsi (L) | Kapasitas Minyak Pelumas | CylinderQ·ty | Bore×Stroke (mm) | rasio komprèsi | ukuran outline (mm) | Bobot (kg) |
| XGT-8 | 8/8.8 | 10/11 | 3Z1.1-G42 | 144 | 245 | 1.1 | 4.5 | 3 | 78×78.4 | 18:1 | 1350×400×800 | 300 |
| XGT-13 | 13/14.3 | 16.8/18.5/3000 | 3Z1.1-G41 | 423.4 | 250 | 1.1 | 4.5 | 3 | 78×78.4 | 18:1 | 1350×400×800 | 360 |
| XGT-10 | 10/11 | 12.8/14.1 | 3ZT1.1-G42 | 18 | 238 | 1.1 | 4.5 | 3 | 78×78.4 | 18:1 | 1350×400×800 | 320 |
| XGT-20 | 20/22 | 25/27/3000 | 3ZT1.1-G41 | 36 | 241 | 1.1 | 4.5 | 3 | 78×78.4 | 18:1 | 1350×400×800 | 405 |
| XGT-12 | 12/13.2 | 16/18 | 4Z2.9-G43 | 21.6 | 230 | 2.9 | 6.5 | 4 | 93×105 | 17.5:1 | 1400×600×1000 | 470 |
| XGT-16 | 16/18 | 22/24 | 4Z2.9-G42 | 28.8 | 228 | 2.9 | 6.5 | 4 | 93×105 | 17.5:1 | 1400×600×1000 | 500 |
| XGT-20 | 20/22 | 27/30 | 4Z2.9-G41 | 36 | 228 | 2.9 | 6.5 | 4 | 93×105 | 17.5:1 | 1400×600×1000 | 550 |
| XGT-12 | 12/13.2 | 16/18 | 4Z2.9-G430 | 21.6 | 235 | 2.9 | 6.5 | 4 | 93×105 | 17.5:1 | 1500×650×1100 | 490 |
| XGT-16 | 16/18 | 22/24 | 4Z2.9-G420 | 28.8 | 230 | 2.9 | 6.5 | 4 | 93×105 | 17.5:1 | 1500×650×1100 | 520 |
| XGT-20 | 20/22 | 27/30 | 4Z2.9-G410 | 36 | 230 | 2.9 | 6.5 | 4 | 93×105 | 17.5:1 | 1500×650×1100 | 570 |
| XGT-25 | 25/27.5 | 32/35 | 4Z3.2-G42 | 45 | 220 | 3.2 | 6.5 | 4 | 98×105 | 17.5:1 | 1500×700×1100 | 590 |
| XGT-30 | 30/33 | 36/40 | 4Z3.2-G41 | 54 | 220 | 3.2 | 6.5 | 4 | 98×105 | 17.5:1 | 1500×700×1100 | 620 |
| XGT-32 | 32/35 | 39/44 | 4ZTAA3.2-G33 | 57.6 | 220 | 3.2 | 6.5 | 4 | 98×105 | 17.5:1 | 1600×750×1200 | 650 |
| XGT-40 | 40/44 | 49/54 | 4ZTAA3.2-G32 | 72 | 215 | 3.2 | 6.5 | 4 | 98×105 | 17.5:1 | 1600×750×1200 | 670 |
| XGT-55 | 55/60 | 64/70 | 4ZTAA3.2-G31 | 99 | 215 | 3.2 | 6.5 | 4 | 98×105 | 17.5:1 | 1600×750×1200 | 700 |
| XGT-60 | 60/66 | 74/81 | 4ZTAA3.5-G31 | 108 | 210 | 3.5 | 6.5 | 4 | 98×115 | 17.5:1 | 1600×750×1200 | 950 |
| XGT-20 | 20/22 | 27/30 | 4RTAA2.8-G39 | 36 | 191 | 2.8 | 5.5-8 | 4 | 94×100 | 17.1:1 | 1700×850×1200 | 750 |
| XGT-30 | 30/33 | 38/42 | 4RTAA2.8-G31 | 54 | 191 | 2.8 | 5.5-8 | 4 | 94×100 | 17.1:1 | 1800×850×1250 | 800 |
| XGT-40 | 40/44 | 51/56 | 4RTAA2.8-G32 | 72 | 191 | 2.8 | 5.5-8 | 4 | 94×100 | 17.1:1 | 1800×850×1250 | 850 |
| XGT-50 | 50/55 | 62/68 | 4RTAA2.8-G37 | 90 | 191 | 2.8 | 5.5-8 | 4 | 94×100 | 17.1:1 | 1900×850×1250 | 900 |
| XGT-50 | 50/55 | 62/68/3000 | 4RTAA2.8-G34 | 90 | 218 | 2.8 | 5.5-8 | 4 | 94×100 | 17.1:1 | 1950×880×1300 | 920 |
| XGT-64 | 64/70 | 80/88/3000 | 4RTAA2.8-G35 | 115.2 | 218 | 2.8 | 5.5-8 | 4 | 94×100 | 17.1:1 | 2000×900×1350 | 980 |
| XGT-75 | 75/82 | 95/105/3000 | 4RTAA2.8-G38 | 135 | 218 | 2.8 | 5.5-8 | 4 | 94×100 | 17.1:1 | 2000×900×1350 | 980 |
| XGT-40 | 40/44 | 51/56 | 4HTAA4.3-G31 | 72 | 192 | 4.3 | 11-13 | 4 | 105×124 | 16:1 | 1900×760×1250 | 880 |
| XGT-50 | 50/55 | 62/68 | 4HTAA4.3-G32 | 90 | 192 | 4.3 | 11-13 | 4 | 105×124 | 16:1 | 1900×760×1250 | 900 |
| XGT-64 | 64/70 | 78/86 | 4HTAA4.3-G33 | 115.2 | 192 | 4.3 | 11-13 | 4 | 105×124 | 16:1 | 1900×760×1250 | 900 |
| XGT-80 | 80/90 | 95/105 | 4HTAA4.3-G34 | 144 | 192 | 4.3 | 11-13 | 4 | 105×124 | 16:1 | 1950×890×1250 | 950 |
| XGT-90 | 90/100 | 106/117 | 4HTAA4.3-G35 | 162 | 192 | 4.3 | 11-13 | 4 | 105×124 | 16:1 | 2100×890×1300 | 1000 |
| XGT-110 | 110/120 | 125/140 | 4HTAA4.3-G36 | 198 | 192 | 4.3 | 11-13 | 4 | 105×124 | 16:1 | 2100×890×1300 | 1050 |
| XGT-110 | 110/120 | 125/140 | 4HTAA4.5-G32 | 198 | 192 | 4.5 | 11-15 | 4 | 108×124 | 16:1 | 2150×890×1300 | 1100 |
| XGT-120 | 120/132 | 155 | 4HTAA4.5-G31 | 216 | 192 | 4.5 | 11-15 | 6 | 108×124 | 16:1 | 2150×890×1250 | 1100 |
| XGT-110 | 110/120 | 128/141 | 6HTAA6.5-G31 | 198 | 192 | 6.5 | 15-17.5 | 6 | 105×124 | 16:1 | 2300×850×1300 | 1300 |
| XGT-120 | 120/132 | 140/155 | 6HTAA6.5-G32 | 216 | 192 | 6.5 | 15-17.5 | 6 | 105×124 | 16:1 | 2300×850×1300 | 1300 |
| XGT-135 | 135/150 | 155/170 | 6HTAA6.5-G35 | 243 | 192 | 6.5 | 15-17.5 | 6 | 105×124 | 16:1 | 2300×850×1300 | 1300 |
| XGT-150 | 150/165 | 168/185 | 6HTAA6.5-G33 | 270 | 192 | 6.5 | 15-17.5 | 6 | 105×124 | 16:1 | 2350×850×1300 | 1350 |
| XGT-160 | 160/180 | 186/205 | 6HTAA6.5-G34 | 288 | 192 | 6.5 | 15-17.5 | 6 | 105×124 | 16:1 | 2500×890×1400 | 1500 |
| XGT-180 | 180/200 | 208/228 | 6HTAA7.2-G32 | 324 | 192 | 7.2 | 15-17.5 | 6 | 108×130 | 16:1 | 2600×950×1450 | 1650 |
| XGT-200 | 200/220 | 250 | 6HTAA7.2-G31 | 360 | 192 | 7.2 | 15-17.5 | 6 | 108×130 | 16:1 | 2700×950×1500 | 2100 |
| XGT-160 | 160/180 | 185/204 | 6DTAA8.9-G31 | 288 | 192 | 8.9 | 15-19 | 6 | 114×144 | 18:1 | 2500×890×1400 | 1800 |
| XGT-180 | 180/200 | 195/228 | 6DTAA8.9-G32 | 324 | 192 | 8.9 | 15-19 | 6 | 114×144 | 18:1 | 2600×950×1400 | 1760 |
| XGT-200 | 200/220 | 230/253 | 6DTAA8.9-G33 | 360 | 192 | 8.9 | 22-25 | 6 | 114×144 | 16.5:1 | 2650×980×1470 | 2100 |
| XGT-220 | 220/250 | 255/280 | 6DTAA8.9-G34 | 396 | 192 | 8.9 | 22-25 | 6 | 114×144 | 16.5:1 | 2650×980×1470 | 2150 |
| XGT-250 | 250/280 | 280/308 | 6ETAA11.8-G32 | 450 | 190 | 11.8 | 33-41 | 6 | 128×153 | 17:1 | 2950×1150×1680 | 2580 |
| XGT-280 | 280/300 | 307/338 | 6ETAA11.8-G33 | 504 | 190 | 11.8 | 33-41 | 6 | 128×153 | 17:1 | 2900×1100×1650 | 2500 |
| XGT-300 | 300/330 | 340/380 | 6ETAA11.8-G31 | 540 | 190 | 11.8 | 33-41 | 6 | 128×153 | 17:1 | 3150×1280×1750 | 2600 |
| XGT-320 | 320/360 | 360/400 | 6ETAA12.8-G32 | 576 | 190 | 12.8 | 33-41 | 6 | 130×161 | 17:1 | 3200×1300×1750 | 2650 |
| XGT-360 | 360/400 | 401/441 | 6ETAA12.8-G31 | 648 | 190 | 12.8 | 33-41 | 6 | 130×161 | 17:1 | 3200×1300×1750 | 2700 |
| XGT-400 | 400/440 | 450/495 | 6ETAA12.8-G310 | 720 | 190 | 12.8 | 33-41 | 6 | 130×161 | 17:1 | 3200×1300×1750 | 2860 |
| XGT-400 | 400/450 | 459/505 | 12GTAA27-G34 | 720 | 195 | 26.6 | 55-65 | 12 | 135×155 | 16:1 | 3600×1500×2200 | 4000 |
| XGT-450 | 450/500 | 505/555 | 12GTAA27-G33 | 810 | 195 | 26.6 | 55-65 | 12 | 135×155 | 16:1 | 3600×1500×2200 | 4100 |
| XGT-500 | 500/550 | 565/622 | 12GTAA27-G32 | 900 | 195 | 26.6 | 55-65 | 12 | 135×155 | 16:1 | 3600×1500×2200 | 4250 |
| XGT-560 | 560/620 | 622/684 | 12GTAA27-G31 | 1008 | 195 | 26.6 | 55-65 | 12 | 135×155 | 16:1 | 3600×1500×2200 | 4300 |
| XGT-400 | 400/450 | 460/506 | 6KTAA25-G311 | 720 | 192 | 25.2 | 45-75 | 6 | 170×185 | 16:1 | 3500×1500×1900 | 4000 |
| XGT-450 | 450/500 | 520/572 | 6KTAA25-G310 | 810 | 192 | 25.2 | 45-75 | 6 | 170×185 | 16:1 | 3500×1500×1900 | 4080 |
| XGT-500 | 500/550 | 572/629 | 6KTAA25-G39 | 900 | 192 | 25.2 | 45-75 | 6 | 170×185 | 16:1 | 3900×1600×2150 | 4300 |
| XGT-560 | 560/600 | 622/684 | 6KTAA25-G38 | 1008 | 192 | 25.2 | 45-75 | 6 | 170×185 | 16:1 | 3900×1600×2150 | 4380 |
| XGT-400 | 400/450 | 460/506 | 6KTAA25-G36 | 720 | 192 | 25.2 | 45-75 | 6 | 170×185 | 14.5:1 | 3500×1400×2150 | 4000 |
| XGT-450 | 450/500 | 520/572 | 6KTAA25-G35 | 810 | 192 | 25.2 | 45-75 | 6 | 170×185 | 14.5:1 | 3600×1500×2000 | 4200 |
| XGT-500 | 500/550 | 572/629 | 6KTAA25-G34 | 900 | 192 | 25.2 | 45-75 | 6 | 170×185 | 14.5:1 | 3800×1750×2150 | 4300 |
| XGT-560 | 560/600 | 622/684 | 6KTAA25-G33 | 1008 | 192 | 25.2 | 45-75 | 6 | 170×185 | 14.5:1 | 3800×1750×2150 | 4400 |
| XGT-600 | 600/660 | 685/754 | 6KTAA25-G32 | 1080 | 192 | 25.2 | 45-75 | 6 | 170×185 | 14.5:1 | 3900×1640×2200 | 5270 |
| XGT-660 | 660/720 | 728/800 | 6KTAA25-G31 | 1188 | 192 | 25.2 | 45-75 | 6 | 170×185 | 14.5:1 | 4000×1620×2150 | 5350 |
| XGT-720 | 720/800 | 820/902 | 6KTAA25-G320 | 1296 | 192 | 25.2 | 45-75 | 6 | 170×185 | 14.5:1 | 4000×1820×2400 | 6150 |
| XGT-800 | 800/900 | 880/968 | 6KTAA25-G321 | 1440 | 192 | 25.2 | 45-75 | 6 | 170×185 | 14.5:1 | 4950×1820×2400 | 6350 |
| XGT-720 | 720/800 | 818/900 | 6WTAA35-G32 | 1296 | 195 | 35.1 | 75-100 | 6 | 186×215 | 16:1 | 4400×1800×2550 | 6100 |
| XGT-800 | 800/900 | 882/970 | 6WTAA35-G31 | 1440 | 195 | 35.1 | 75-100 | 6 | 186×215 | 16:1 | 4400×1800×2550 | 6500 |
| XGT-900 | 900/1000 | 1018/1120 | 6WTAA35-G310 | 1620 | 195 | 35.1 | 75-100 | 6 | 186×215 | 16:1 | 4700×2100×2550 | 7350 |
| XGT-1000 | 1000/1100 | 118/1230 | 6WTAA35-G311 | 1800 | 195 | 35.1 | 75-100 | 6 | 186×215 | 16:1 | 4800×2100×2550 | 8500 |
| XGT-1000 | 1000/1100 | 1160/1280 | 12KTA58-G37 | 1800 | 188 | 57.2 | 280-320 | 12 | 170×210 | 18:1 | 5000×2100×2550 | 8700 |
| XGT-1100 | 1100/1200 | 1280/1410 | 12KTA58-G36 | 1980 | 188 | 57.2 | 280-320 | 12 | 170×210 | 18:1 | 5000×2100×2550 | 8900 |
| XGT-1250 | 1250/1350 | 1420/1560 | 12KTA58-G35 | 2250 | 188 | 57.2 | 280-320 | 12 | 170×210 | 18:1 | 5200×2200×2550 | 12000 |
| XGT-1350 | 1350/1500 | 1560/1720 | 12KTA58-G34 | 2430 | 188 | 57.2 | 280-320 | 12 | 170×210 | 18:1 | 5800×2280×2650 | 13000 |
| XGT-1500 | 1500/1650 | 1720/1890 | 12KTA58-G33 | 2700 | 188 | 57.2 | 280-320 | 12 | 170×210 | 18:1 | 5800×2280×2650 | 14000 |
| XGT-1600 | 1600/1800 | 1850/2035 | 12KTA58-G32 | 2880 | 188 | 57.2 | 280-320 | 12 | 170×210 | 18:1 | 5800×2280×2650 | 15000 |
| XGT-1800 | 1800/2000 | 2010/2210 | 12KTA58-G31 | 3240 | 188 | 57.2 | 280-320 | 12 | 170×210 | 18:1 | 5800×2280×2650 | 16500 |
Pameran
layanan sawise-sales
| produk | Kualitas stabil-100% dijamin | Saben generator kita diprodhuksi kudu pass 12 langkah saka mriksa lan atleast 4 jam testing operasi, ora "UN-qualified" siji bisa urip.Kabeh genset genset wis musna liwat testing kaku sadurunge kang dirilis kanggo panggonan pasar, kalebu 50% mbukak, 75% mbukak, 100% mbukak 110% mbukak lan kabeh fungsi pangayoman (overspeed mandeg, meksa banyu dhuwur, kurang daya mandeg). |
| Dijamin & packing mantap | Saben generator bakal dikempalken kanthi cara sing kuwat lan ekonomis kanggo mesthekake yen barang dikirim kanthi sampurna | |
| Wektu pangiriman sing tepat | Produk sing disedhiyakake: Produk standar tanpa syarat khusus bisa dikontrol sajrone 2 minggu nalika dikirim. Produk sing ana ing pesenan: Kanthi "sistem manajemen pesenan sing ketat lan efektif" wektu pangiriman bisa dikontrol wektu linuwih luwih saka 95.7% (sing ditundha amarga alasan sing ora dikarepke kudu dikelola paling ora 10 dina) | |
| Layanan | Layanan pre-sale | Komunikasi efisiensi dhuwur & informasi setya 24 jam online |
| layanan sawise-sale | Njamin kanggo 12 sasi utawa 1000 jam mlaku (miturut endi wae tekan pisanan) saka tanggal diinstal. Sajrone periode njamin, kita bakal nyedhiyani free gampang-rusak spare-parts kanggo masalah disebabake kualitas kita produksi utawa bahan baku, kajaba spare pars damageable engine diesel disebabake customer salah operasi manungsa-digawe, Sawise kadaluwarsa, perusahaan kita nyedhiyani biaya spare-parts pangopènan gensets. |
Kualifikasi Perusahaan
Sertifikat Kualifikasi ISO
FAQ
1.Apa generator sampeyan asli lan anyar?
Wangsulan: Iki minangka produk asli anyar lan dilengkapi garansi pabrik asli.
2.Apa daya serep lan daya umum? Aku kudu milih sing endi?
Jawaban: Daya serep mung digunakake sok-sok nalika mati daya, nalika daya umum bisa digunakake terus kanggo 24 jam. Nyaranake reservasi margin 10% -20%.
3. Bakal daya output generator nyuda ing kahanan suhu dhuwur?
Wangsulan: Ya, iku bakal suda. Umumé, miturut standar industri, yen suhu lingkungan ngluwihi 40 ° C, generator kudu nimbang ngurangi kapasitas kanggo nggunakake.
4. Apa sampeyan duwe sertifikasi CE? Apa sampeyan bisa mbantu ngresiki adat kanthi lancar ing lokal?
Jawaban: Produk kita wis lulus sertifikasi kualitas ISO9001 lan sertifikasi CE. Lan bisa nyedhiyakake set lengkap dokumen bea cukai kayata daftar pengepakan, invoice, sertifikat asal, lsp.
5.Apa generator nglumpuk lan dikirim menyang port?
Jawaban: Ing kahanan normal, produk kita dikemas ing kothak kayu fumigasi kanggo kabeh unit, lan uga bisa disesuaikan miturut syarat khusus pelanggan. Ing kahanan normal, port pangiriman yaiku Pelabuhan Xiamen ing China. Yen perlu, port apa wae ing China uga bisa digunakake
6.Aku tukang listrik, nanging aku durung nate nginstal mesin gedhe kaya ngono. Apa sampeyan nyedhiyakake gambar instalasi utawa video?
Wangsulan: Nyedhiyani versi Inggris manual pangguna, diagram sirkuit, lan uga pandhuan video WhatsApp sing ringkes.
7. Apa jumlah pesenan minimal?
Wangsulan: Bab ingkang utama kanggo pesenan minimal 1 unit.
8. Apa cara pembayaran?
Jawaban: 30% transfer kabel minangka simpenan, lan 70% transfer kabel kudu dibayar sadurunge kiriman.
9. Yen mesin rusak, ngendi aku bisa tuku bagean?
Wangsulan: Bab ingkang utama: Kita bakal kanthi acak menehi paket bagean sing rawan (telung saringan, gasket, lan sapiturute), lan nerangake manawa aksesoris umum bisa dituku sacara lokal, lan aksesoris khusus bisa dikirim dening DHL express
Hot Tags: Shangchai Series Power Diesel Generator Set, China, Produsen, Supplier, Pabrik
Kategori sing gegandhengan
Kirim Pitakonan
Info kontak
-
alamat
No. 55 Xingda Road, Huada Technology Entrepreneurship Park, Wan'an Street, Luojiang District, Quanzhou City
-
Telp
-
E-mail
Yen sampeyan duwe pitakon babagan kutipan utawa kerjasama, bukak email gratis ing Xueliqin@qzgtjx.com utawa gunakake formulir pitakon ing ngisor iki. Perwakilan penjualan kita bakal ngubungi sampeyan sajrone 24 jam. Matur nuwun kanggo kapentingan ing produk kita.
